Product name：Side Wall Conveyor Belt
-
Detailed description
Product features:

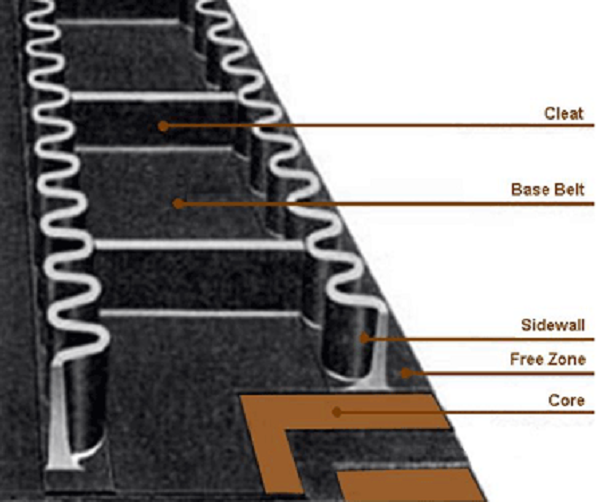

Side wall conveyor belt is technically cooperated with Huicheng rubber, it provides good cross rigidity and special side wall design that make large angle conveying have excellent transportation performance and longer service life, 45°~ 90°angle conveying shorten the conveyor belt length and save the conveying area.
Fabric
Carcass strength
(N/mm)
160
250
315
400
500
630
800
1000
(carcass + reinforcement layer
(2+2)P
(2+2)P
(2+2)P
(2+2)P
(3+2)P
(3+2)P
(3+2)P
(4+2)P
Rubber specification
Cover rubber grade
abrasion resistant, super abrasion resistant, general heat resistant, fire resistant
(Top cover x Bottom cover) thickness mm
4.0 x 2.5
4.0 x 2.5
4.0 x 2.5
4.0 x 2.5
4.5 x 4.0
4.5 x 4.0
4.5 x 4.0
4.5 x 2.5
Belt width
300 mm
●
●
●
350 mm
●
●
●
400 mm
●
●
●
450 mm
●
●
●
500 mm
●
●
●
●
600 mm
●
●
●
●
●
650 mm
●
●
●
●
●
700 mm
●
●
●
●
●
750 mm
●
●
●
●
●
●
800 mm
●
●
●
●
●
900 mm
●
●
●
●
●
●
●
1000 mm
●
●
●
●
●
●
1050 mm
●
●
●
●
●
●
1200 mm
●
●
●
●
●
1350 mm
●
●
●
●
1400 mm
●
●
●
1500 mm
●
●
1500 mm
●
●
●
●
