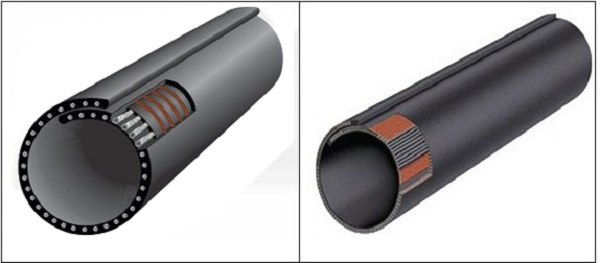

Product name：Pipe Conveyor Belt
-
Detailed description
Product features:
1、Using sealed conveying method to protect the handling materials and environment.
2､Prevent the carrying materials from falling off or spilling out that cause environment pollution.
3､Prevent other materials or rain from entering, assure purity of products.
4､Enable Conveying in curved line without geography limit.
5､Provide large conveying angle(Max. 30°) than traditional belt, shorten conveying distance.
pipe diameter(mm)
Loading area(m2)
Conveying speed(m/min)
Conveying Volume(m3/h)
150
0.013
120
95
200
0.024
130
184
250
0.037
140
309
300
0.053
150
477
350
0.072
175
758
400
0.094
200
1131
500
0.147
225
1988
600
0.212
250
2875
700
0.289
275
3931
800
0.377
300
5157
