Product name：Chevron Conveyor Belt
-
Detailed description
Product features:

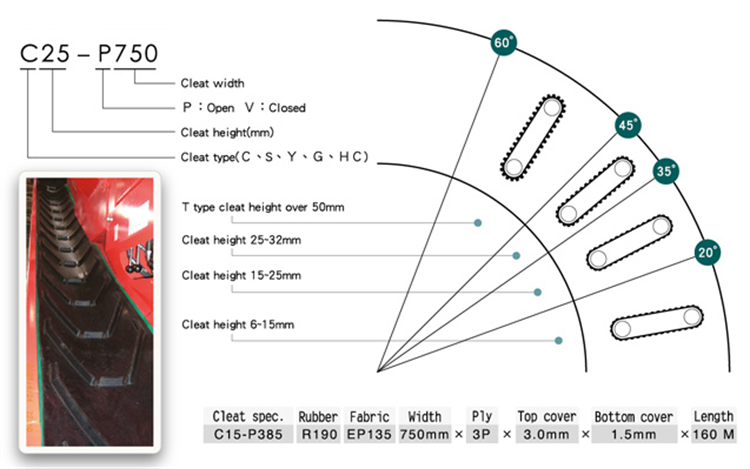

CHEVRON Rubber Conveyor Belt in specific widths, with various cleat heights & patterns & rubber cover compounds. All cleats are integrally molded with high abrasion resistant qualities. Where the angle of inclination of conveyors exceeds 18° utilization of a Chevron Belt is recommended.
Cleat height (mm)
Cleat width (mm)
Available belt width
mm
inch
6
230 ~ 1800
300 ~ 1800
12" ~ 72"
12
250 ~ 855
300 ~ 1200
12" ~ 48"
15
250 ~ 750
300 ~ 1200
12" ~ 48"
17
300 ~ 950
350 ~ 1200
14" ~ 48"
22
1335
1400
56"
25
450 ~ 1000
500 ~ 1600
20" ~ 60"
32
450 ~ 800
500 ~ 1200
20" ~ 48"
50
610 ~ 1220
610 ~ 1220
24" ~ 48"
